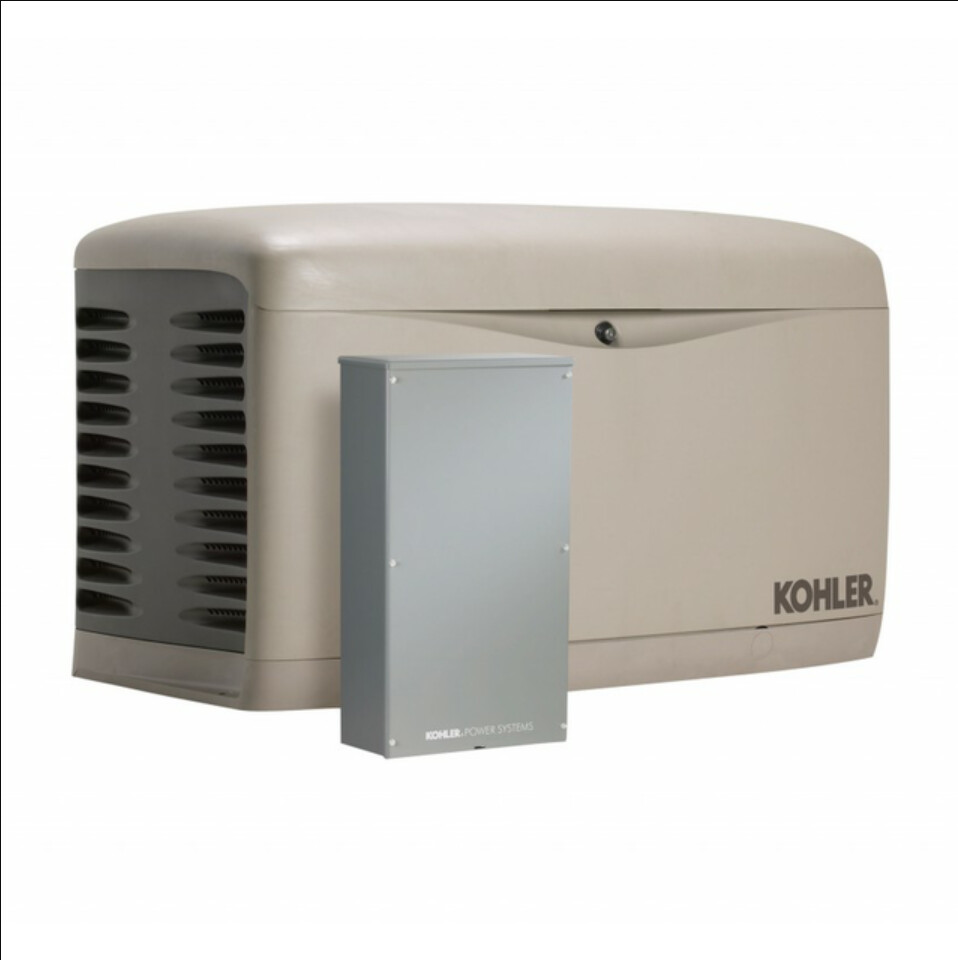

14kW Generator With 100Amp 16 Circuit Load Center ATS

Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

* Reliable.

Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.

* Powerful.

In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.*

* Premium warranty.

We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.

* Award winner.

KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.

* THE POWER YOU NEED

PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances Extraordinary peak motor-starting capacity: 14RESAL at 33kVA at 240V Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators) Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM) Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only

* THE CONVENIENCES YOU EXPECT

RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner Stylish corrosion-proof enclosure impact tested to -30 degrees F Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.

SPECIFICATIONS

PhaseSingle Phase or Three PhaseFuel TypeLPG|Natural GasOff Grid / Utility BackupOff Grid|Utility BackupEnclosure MaterialAluminumPeak Motor Starting kVA @240 V33 kVaVoltage @ 60 Hz120/240|277/480Displacement725 cm³ (44 cu. in.)HorsepowerNG 20.5 HP, LP 23.6 HPBuilt in Mounting PadYesSound Output During Weekly Exercise63 dB(A)Sound Output During Full-speed Operation67 dB(A)WarrantyPremium five-year limited warrantyDimensions1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)Weight440 lbs. (200 kg)Country of OriginUSCertifications/ListingsEPA|CSA|UL 2200|cULAutomatic Transfer Switch IncludedNoRemote Monitoring AvailableIncludedOff Grid Warranty18-month/1000-hour for off-grid applicationsFuel Consumption on LP at 50% load?60 cfhFuel Consumption on NG at 50% load?124 cfhAlternator NoteAll information shown is for 1 Phase 60 Hz generator with the largest alternator option available.Alternator Type2-Pole, Rotating FieldControllerRDC2 ControllerCylinder ArrangementV-2Engine Manufacturer/DescriptionKOHLEREngine ModelCH740Frequency60 HzDigital Voltage Regulation±1.0%Name14RCAL with OnCue Plus
